CV78 5-Axis Centering Vice
$0.00
Overview
5-Axis Centering Vice for precision CNC machining. Designed for zero point clamping systems with 52mm grid spacing.
Key Features
- Compatible with pre-stamped parts or smooth surfaces
- Reversible jaws for extended clamping range
- Accessories and spare parts available
Size Options
| Size | Body Length | Clamping Range |
|---|---|---|

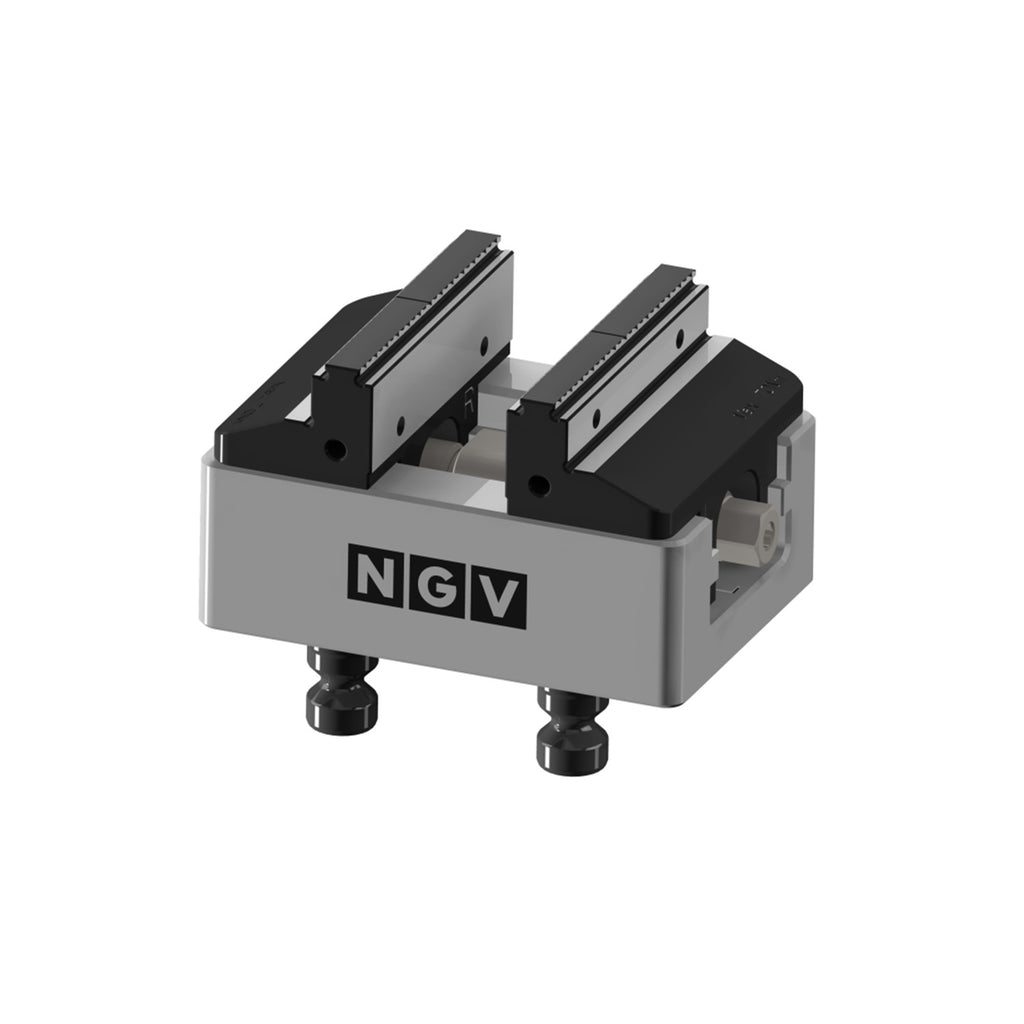

| S | 110mm | 0–90mm |

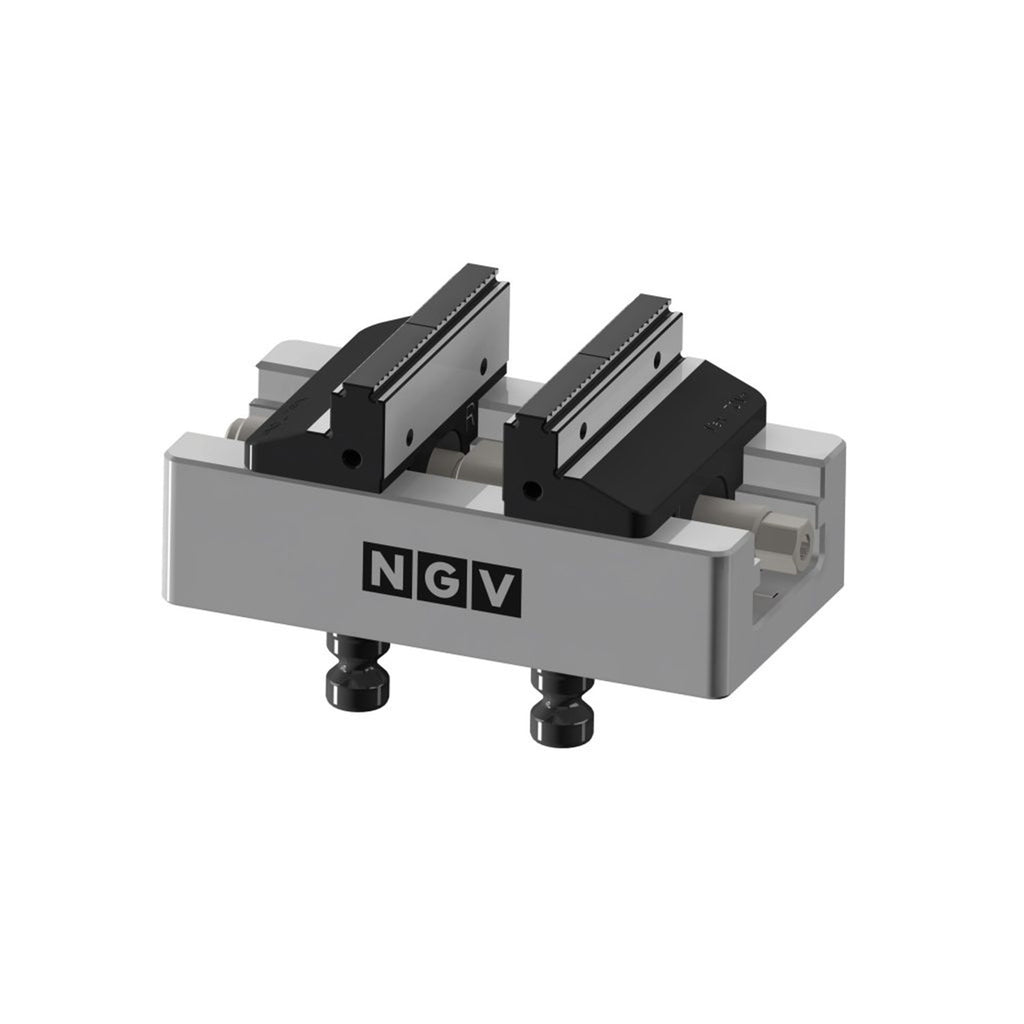

| M | 145mm | 0–125mm |

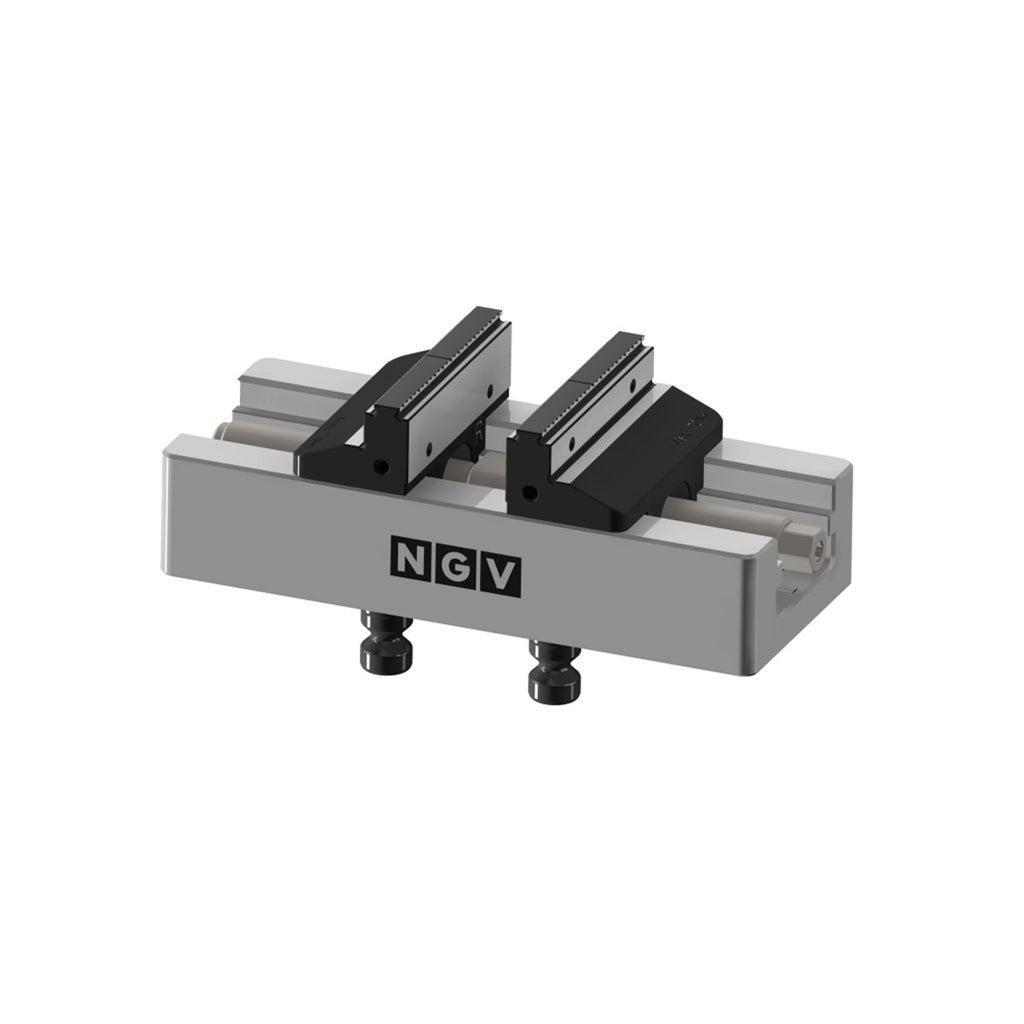

| L | 185mm | 0–165mm |
Specifications
| Jaw Width | 78.5mm |
| Zero Point System | 52mm grid |
| Bolt Diameter | Ø16mm |
| Max Torque | 70 Nm |
| Clamping Force | 14 kN |
| Centering Accuracy | ±0.02mm |
