CV126 5-Axis Centering Vice
$1,277.85
Overview
5-Axis Centering Vice for precision CNC machining. Designed for zero point clamping systems with 96mm grid spacing.
Key Features
- Compatible with pre-stamped parts or smooth surfaces
- Reversible jaws for extended clamping range
- Accessories and spare parts available
Size Options
| Size | Body Length | Clamping Range |
|---|---|---|

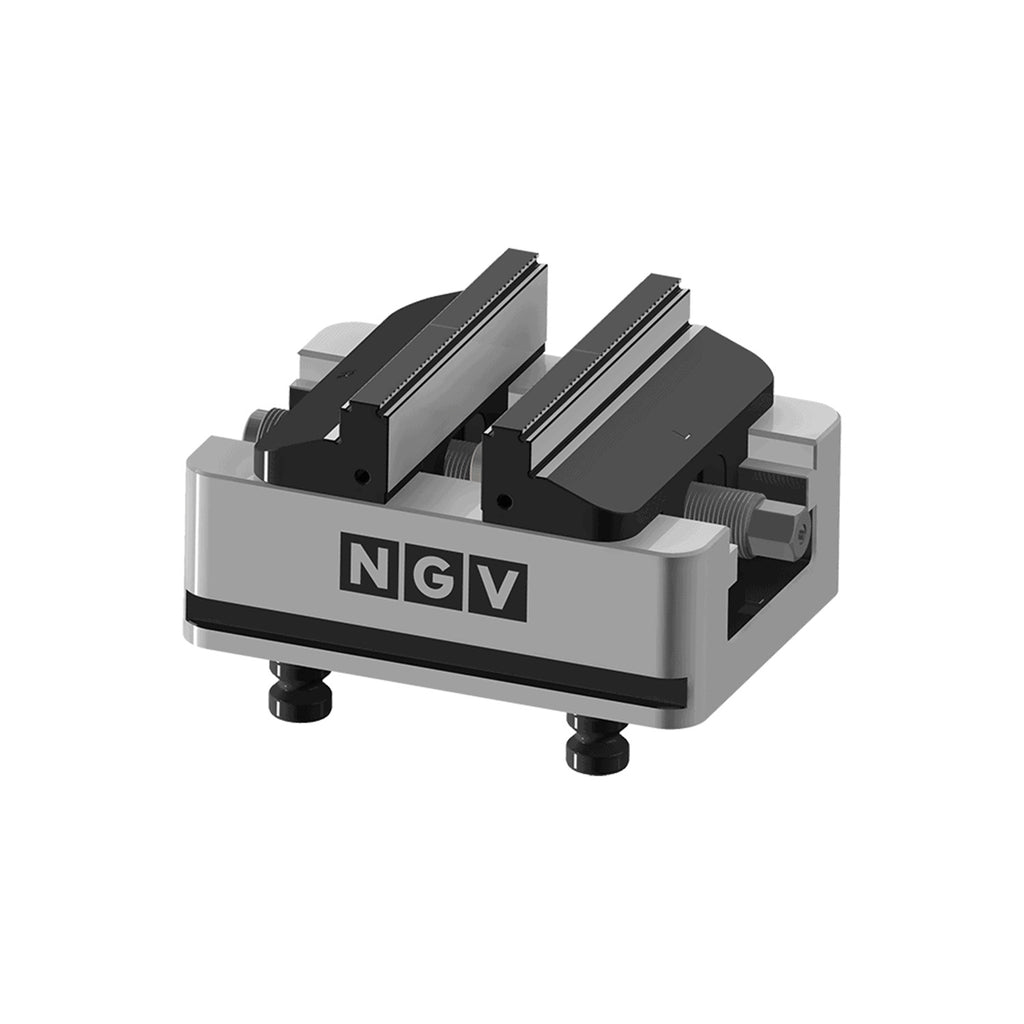

| S | 180mm | 0–155mm |

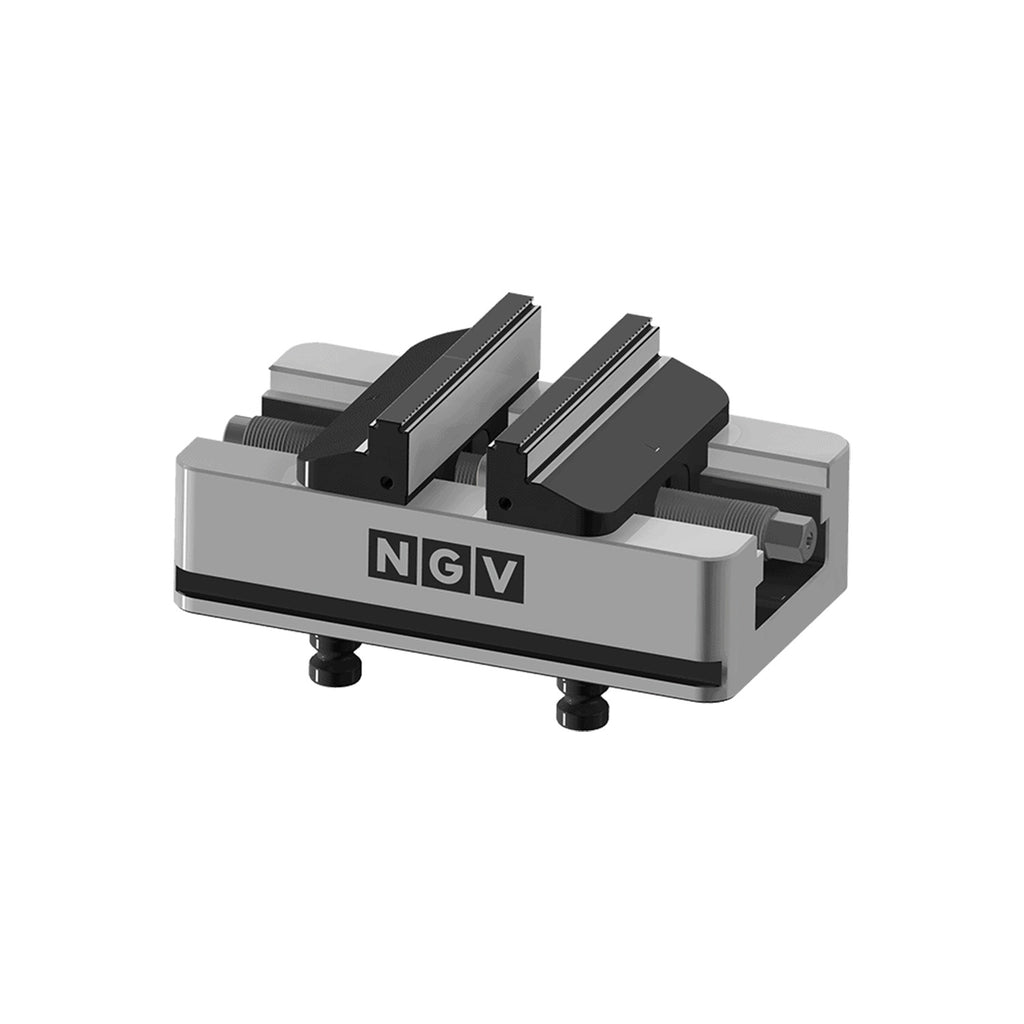

| M | 230mm | 0–205mm |

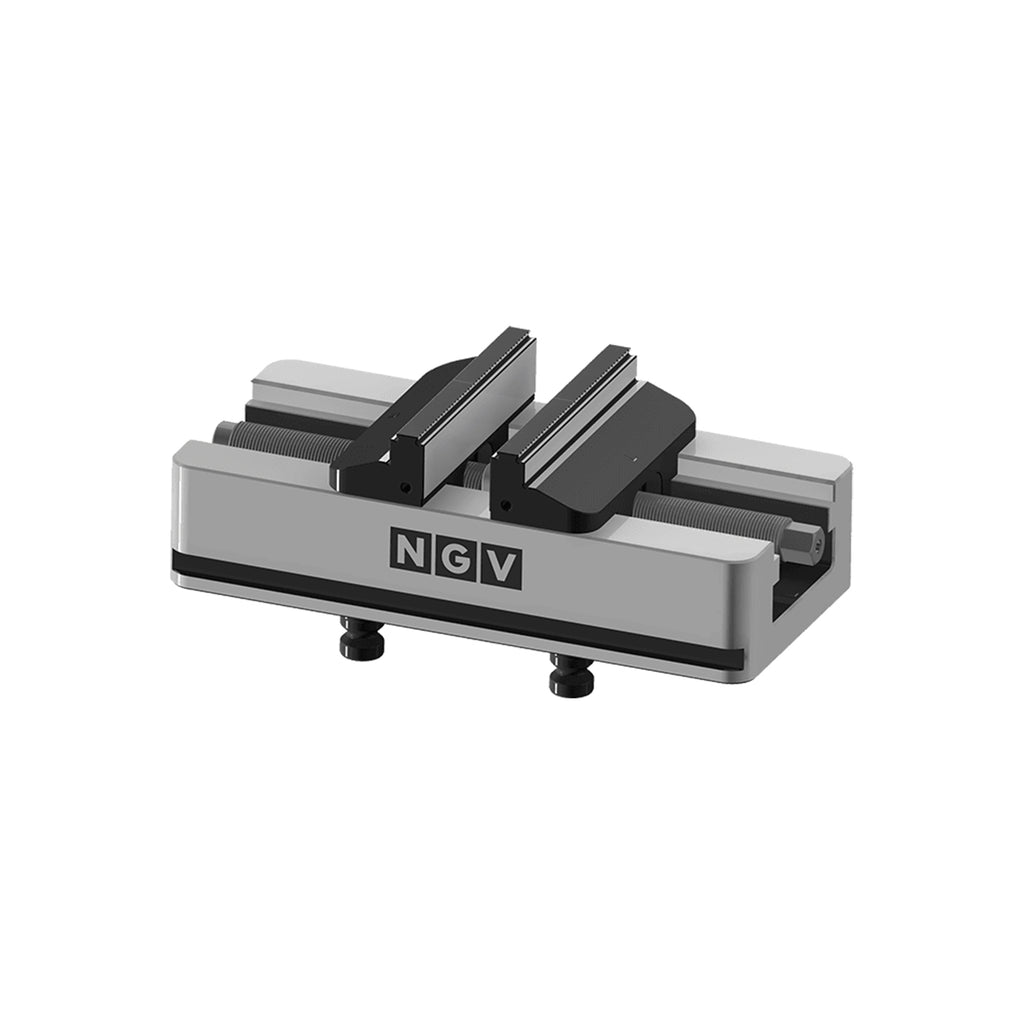

| L | 280mm | 0–255mm |
Specifications
| Jaw Width | 126.5mm |
| Zero Point System | 96mm grid |
| Bolt Diameter | Ø20mm |
| Max Torque | 100 Nm |
| Clamping Force | 20 kN |
| Centering Accuracy | ±0.02mm |
